ZELDA

Description

Data Sheet

NOTE : Has natural shade variation among batches.
Has size variation within JIS. *JIS: ±2.0mm (143 ~ 147mm)
May have small pinholes on surface due to its characteristic of pigments.
Clean with neutral detergent.
5mm joint is recommended.

Application
Indoor Wall	Outdoor Wall	Indoor Floor	Outdoor Floor	Bathroom Wall	Bathroom Floor	Backsplash	Pool
〇	〇	✕	✕	〇	✕	〇	〇

*This application is based on JIS (Japanese Industrial Standards) 〇：Suitable　△：Inquiry Required　✕：Not Suitable

All items are sold by pallet. For the quantity per pallet, please find the Packing Information below.

Update: 7th February, 2025. ZELDA
MADE IN JAPAN				GLAZED PORCELAIN
PACKAGING
COLOR CODE	SIZE	BOX			PLT
		PC	SQ.FT.	LB(NET WEIGHT)	BOX	SQ.FT.	LB(NET WEIGHT)
ZLD-100/200/ 300/400	5-3/4″x5-3/4″ (145x145x11mm)	60	13.80	50.6	40	552.00	2,024
		PC	SQ.M.	KG(NET WEIGHT)	BOX	SQ.M.	KG(NET WEIGHT)
		60	1.26	23	40	50.42	920
*SQ.FT. and SQ.M. quantity is calculated without joint.
TEST REPORT
The tiles have been inspected in accordance with JIS (Japanese Industrial Standards) specification.
Test		Result			Specification
Water Absorption		0.02% on average.			JIS A 1509-3 : 2014
Crazing Resistance		No Crazing.			JIS A 1509-8 : 2014
Frost Resistance		No deterioration.			JIS A 1509-9 : 2014
Bending Fracture Load		2,225.36N on average			JIS A 1509-4 : 2014
Bending Strength		71.36N/mm2 on average			JIS A 1509-4 : 2014
Chemical Resistance		As below:			JIS A 1509-10 : 2020
Ammonium chloride solution		No change.
Hydrochloric acid solution		No change.
Citric acid solution		No change.
Potassium hydroxide solution		No change.
Sodium hypochlorite solution		No change.

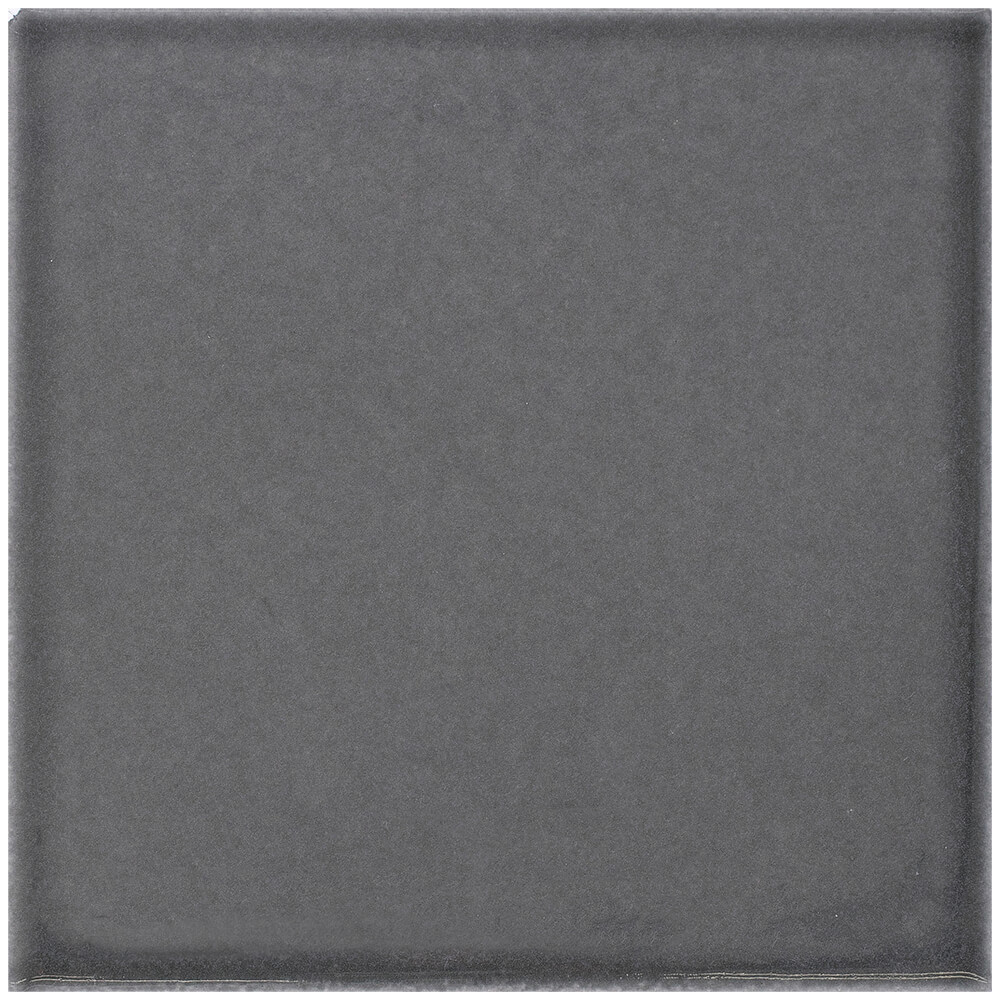

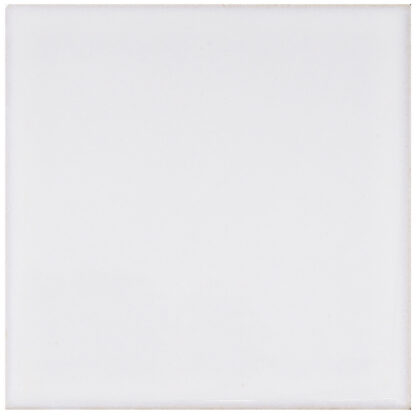

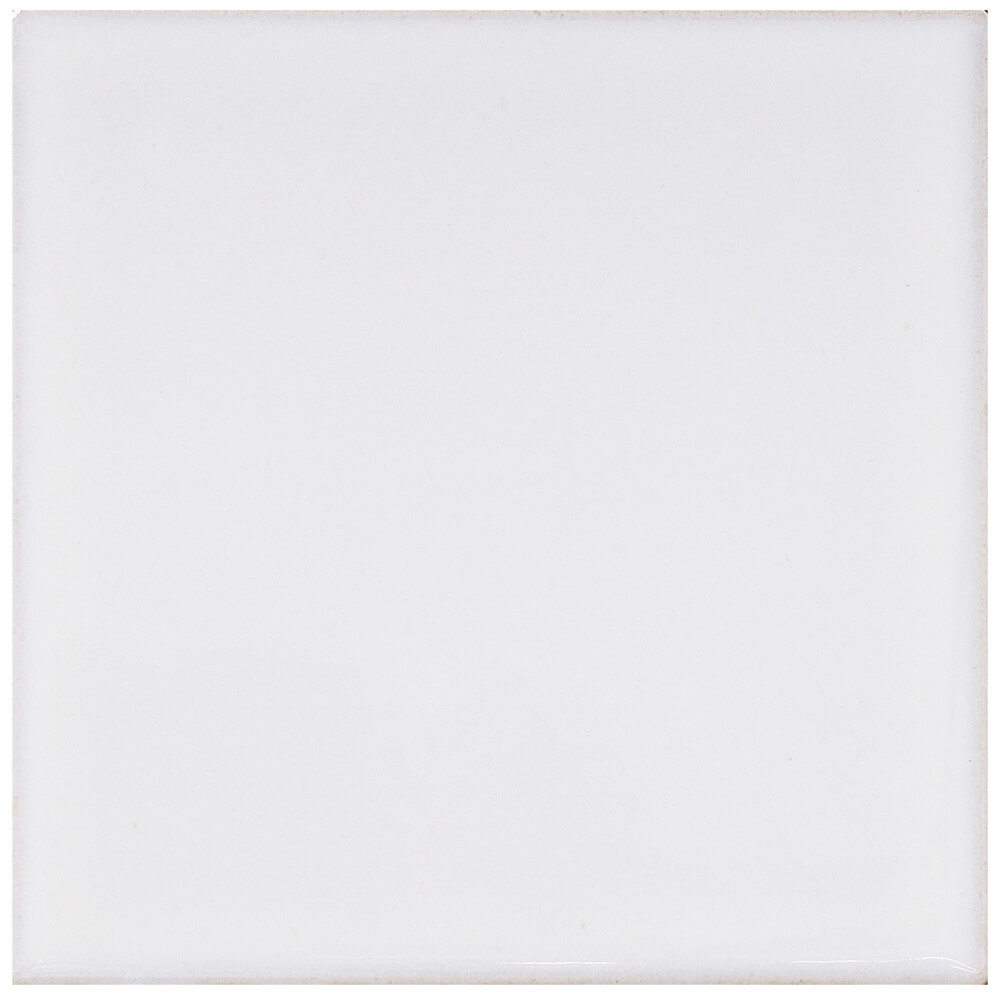

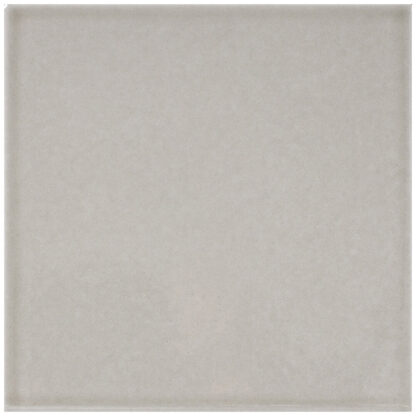

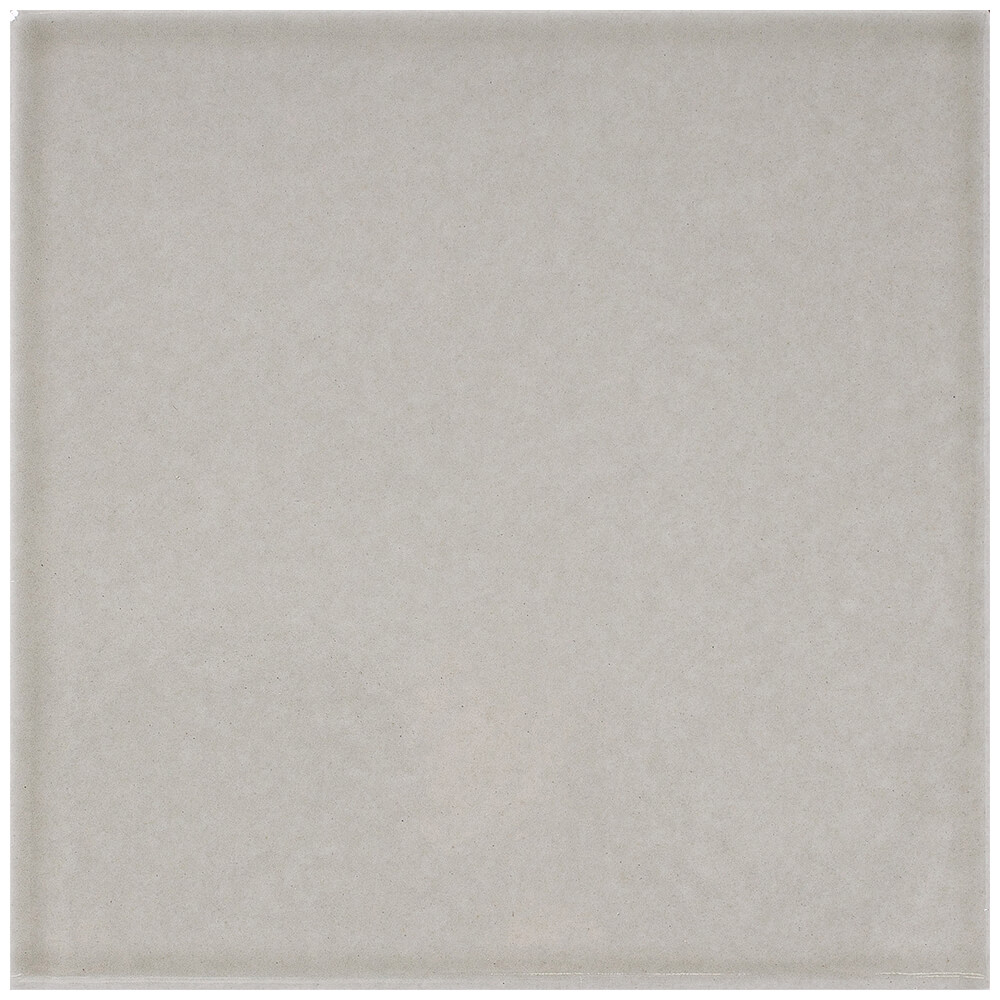

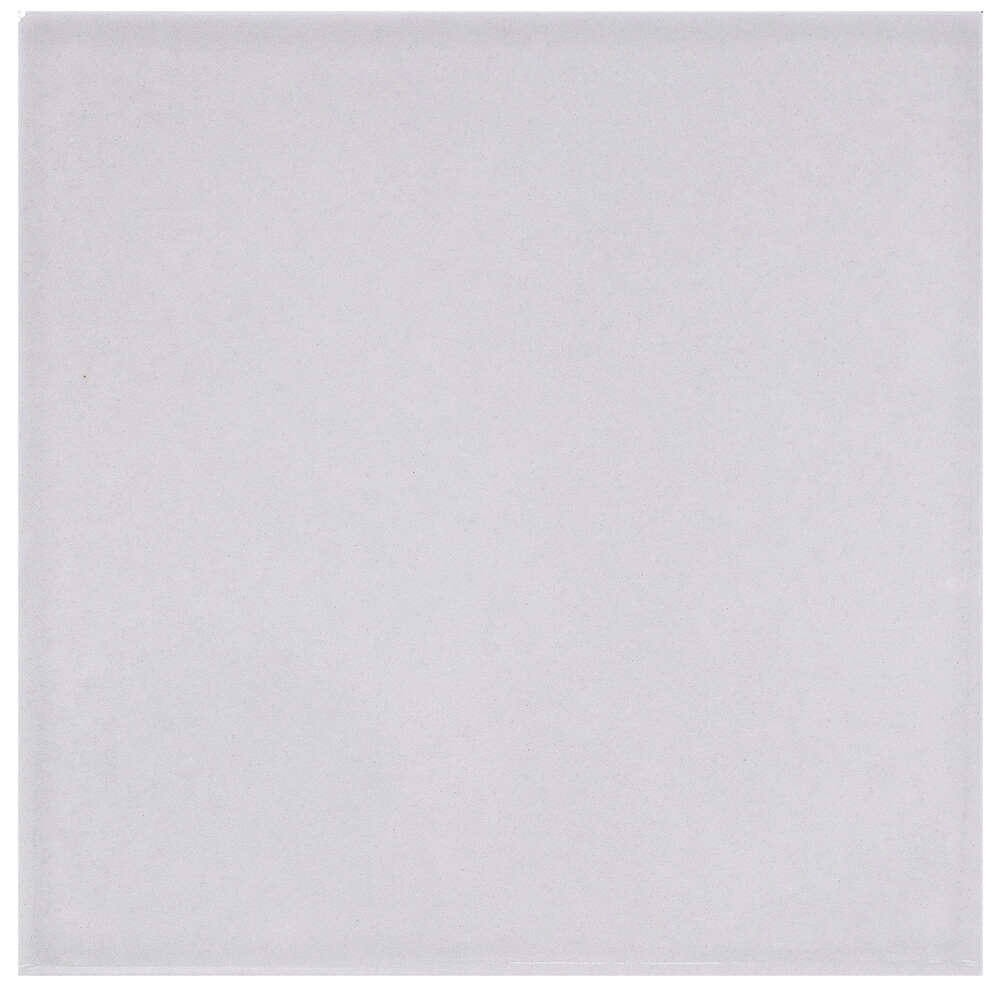

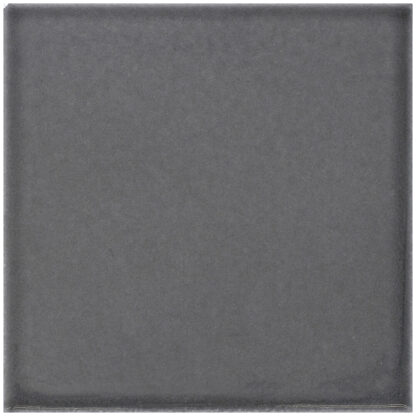

Colors
