WINDOWPANE

Description

Data Sheet

NOTE : Has natural shade variation among batches.
Has size variation within JIS. *JIS: ±1.2mm / ±2.4mm (95.8 ~ 98.2mm / 194.6 ~ 199.4mm)
Clean with neutral detergent.
3mm joint is recommended.

Application
Indoor Wall	Outdoor Wall	Indoor Floor	Outdoor Floor	Bathroom Wall	Bathroom Floor	Backsplash	Pool
〇	〇	✕	✕	〇	✕	〇	△

*This application is based on JIS (Japanese Industrial Standards) 〇：Suitable　△：Inquiry Required　✕：Not Suitable

All items are sold by pallet. For the quantity per pallet, please find the Packing Information below.

Update: 7th February, 2025. WINDOWPANE
MADE IN JAPAN				GLAZED PORCELAIN
PACKAGING
COLOR CODE	SIZE	BOX			PLT
		PC	SQ.FT.	LB(NET WEIGHT)	BOX	SQ.FT.	LB(NET WEIGHT)
WP-1/2/3/4	4″x8″ (97x197x8mm)	40	8.40	33	56	470.40	1,848
		PC	SQ.M.	KG(NET WEIGHT)	BOX	SQ.M.	KG(NET WEIGHT)
		40	0.76	15	56	42.56	840
*SQ.FT. and SQ.M. quantity is calculated without joint.
TEST REPORT
The tiles have been inspected in accordance with JIS (Japanese Industrial Standards) specification.
Test		Result			Specification
Water Absorption		0.212% on average.			JIS A 1509-3 : 2014
Crazing Resistance		No Crazing.			JIS A 1509-8 : 2014
Frost Resistance		No deterioration.			JIS A 1509-9 : 2014
Chemical Resistance		As below:			JIS A 1509-10 : 2014
Ammonium chloride solution		No change.
Hydrochloric acid solution		No change.
Citric acid solution		No change.
Potassium hydroxide solution		No change.
Sodium hypochlorite solution		No change.

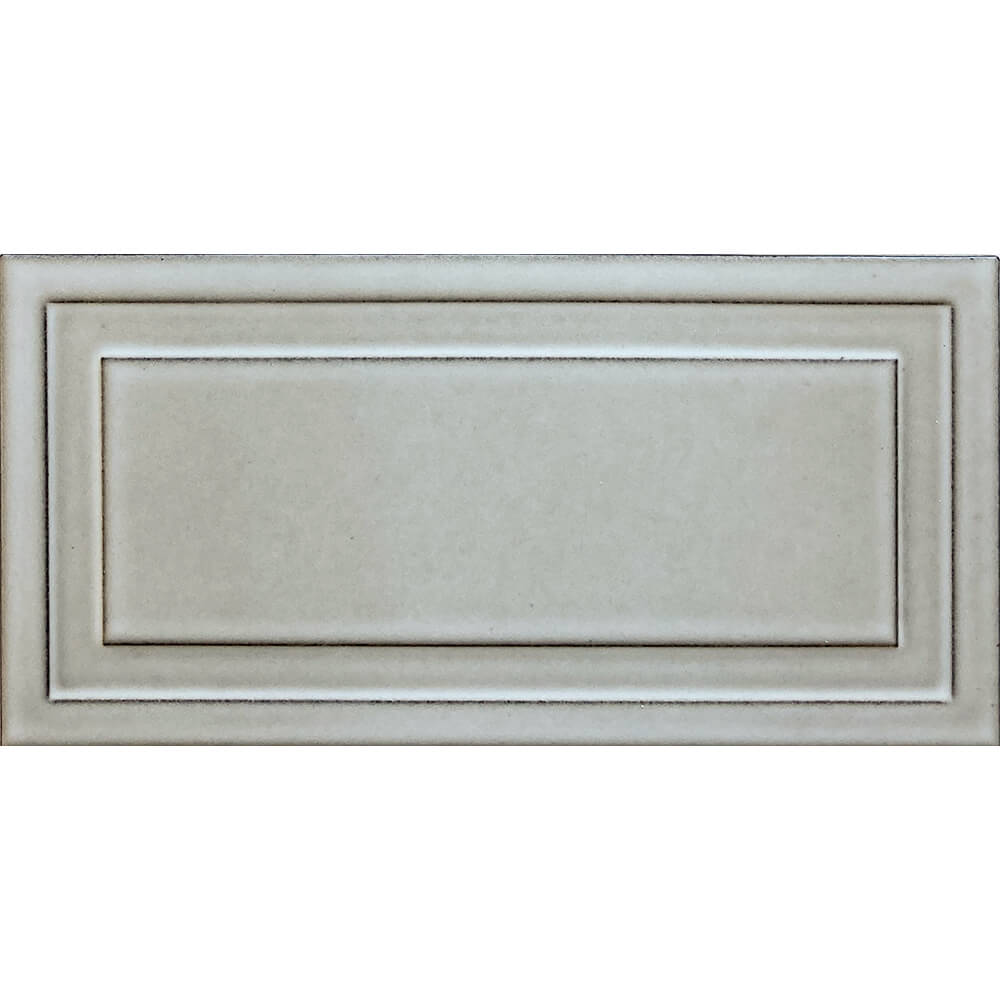

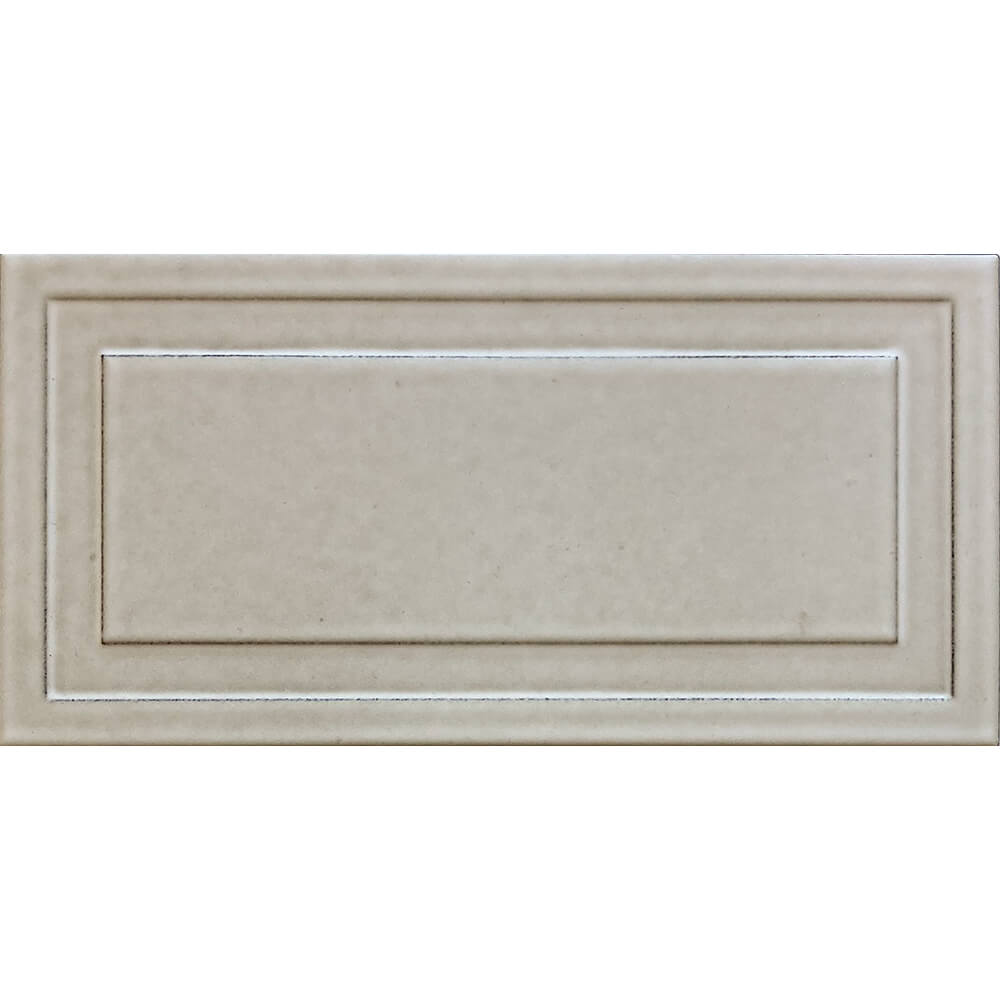

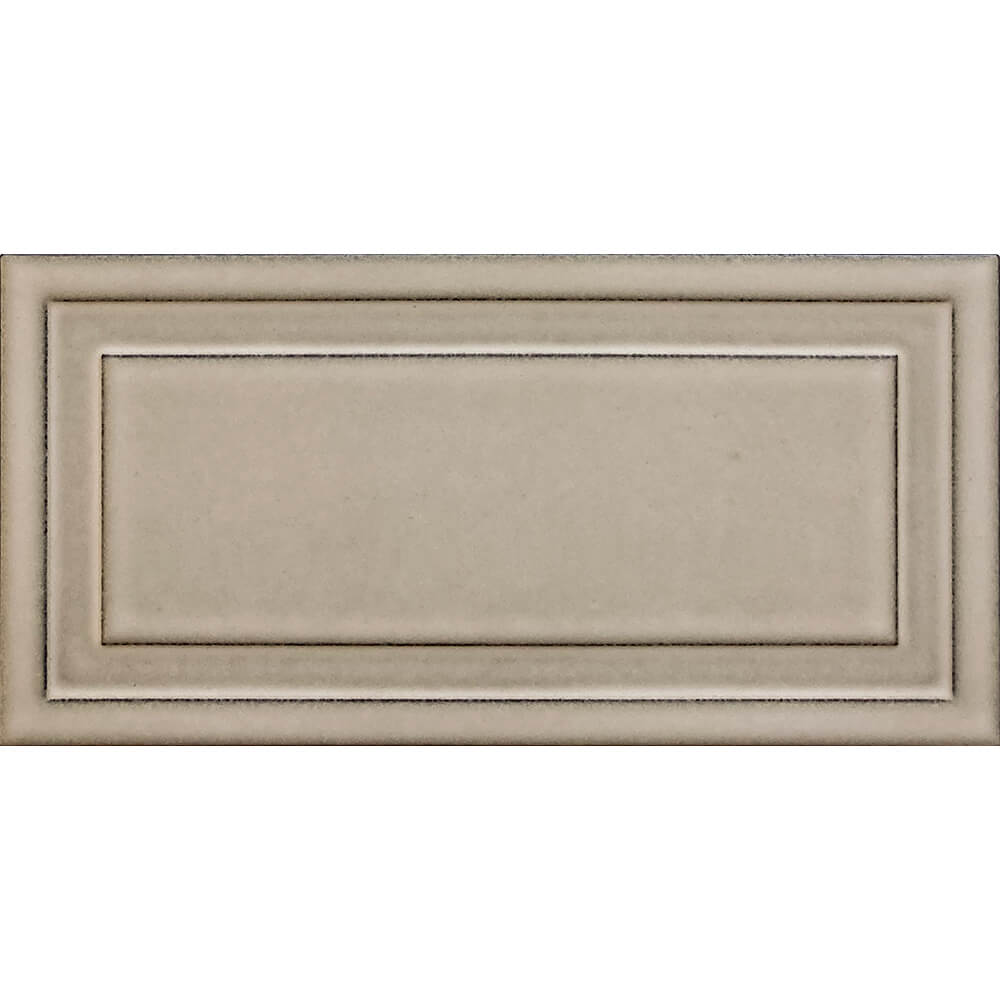

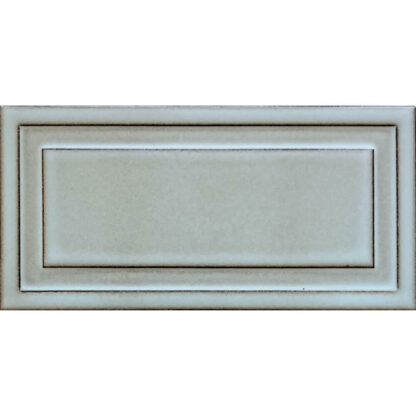

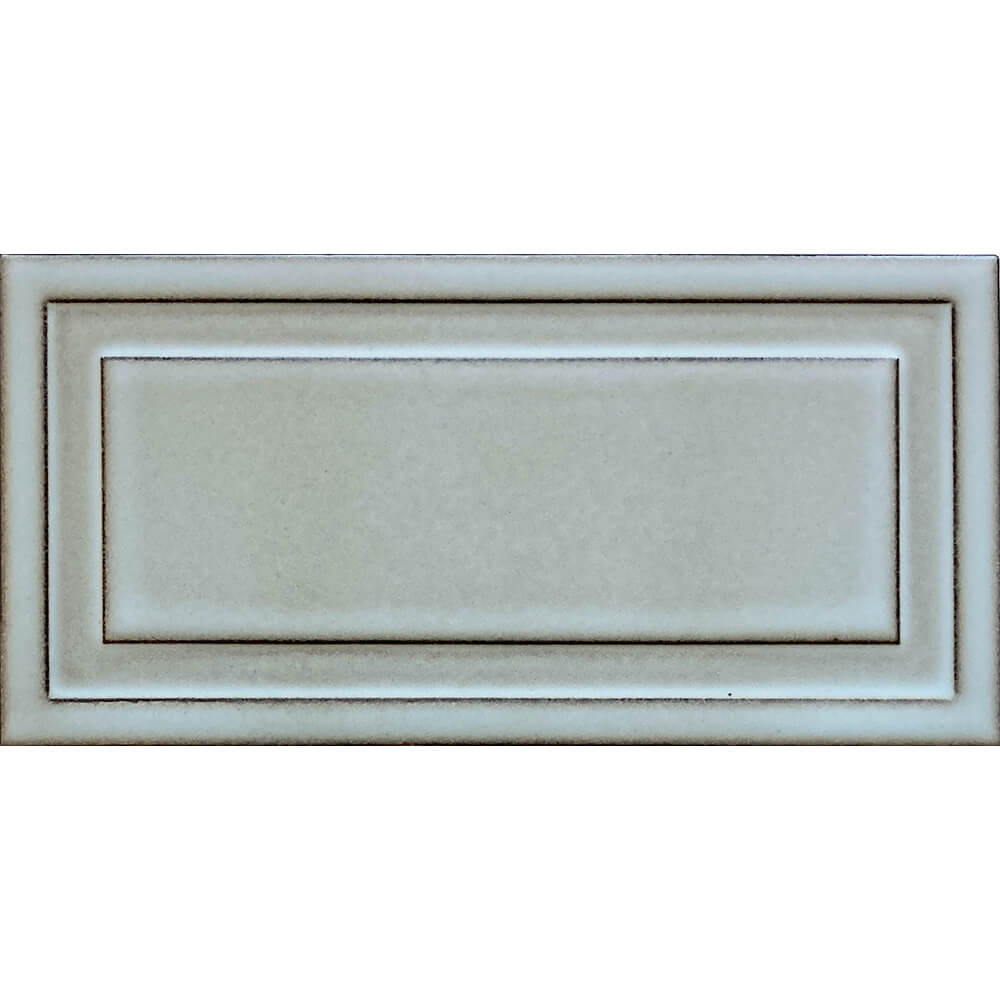

Colors
