OHM

Description

Data Sheet

NOTE : Has natural shade variation among batches.
Has size variation within JIS. *JIS: ±1.2mm / ±2.0mm (95.8 ~ 98.2mm / 195 ~ 199mm)
Clean with neutral detergent.
3mm joint is recommended.

Application
Indoor Wall	Outdoor Wall	Indoor Floor	Outdoor Floor	Bathroom Wall	Bathroom Floor	Backsplash	Pool
〇	✕	✕	✕	〇	✕	〇	✕

*This application is based on JIS (Japanese Industrial Standards) 〇：Suitable　△：Inquiry Required　✕：Not Suitable

All items are sold by pallet. For the quantity per pallet, please find the Packing Information below.

Update: 7th February, 2025.

---

OHM

---

MADE IN JAPAN

GLAZED PORCELAIN

PACKAGING

COLOR CODES	UNIT	SIZE	BOX			PALLET
OHM-1/2/3/4/5/6	INCH/FEET	4"x8"	PC	SQ.FT.	LB(NET WEIGHT)	BOX	SQ.FT.	LB(NET WEIGHT)
			60	12.60	52.8	40	504.00	2,112
	METRIC	97x197x9-11mm	PC	SQ.M.	KG(NET WEIGHT)	BOX	SQ.M.	KG(NET WEIGHT)
			60	1.14	24	40	45.60	960

TEST REPORT

The tiles have been inspected in accordance with JIS (Japanese Industrial Standards) specification.

Test		Result			Specification
Water Absorption		0.02% on average.			JIS A 1509-3 : 2014
Crazing Resistance		No Crazing.			JIS A 1509-8 : 2014
Frost Resistance		No deterioration.			JIS A 1509-9 : 2014
Bending Fracture Load		2559.14N on average			JIS A 1509-4 : 2014
Bending Strength		56.48 N/mm2 on average			JIS A 1509-4 : 2014
Chemical Resistance		As below:			JIS A 1509-10 : 2020
Ammonium chloride solution		No change.
Hydrochloric acid solution		No change.
Citric acid solution		No change.
Potassium hydroxide solution		No change.
Sodium hypochlorite solution		No change.

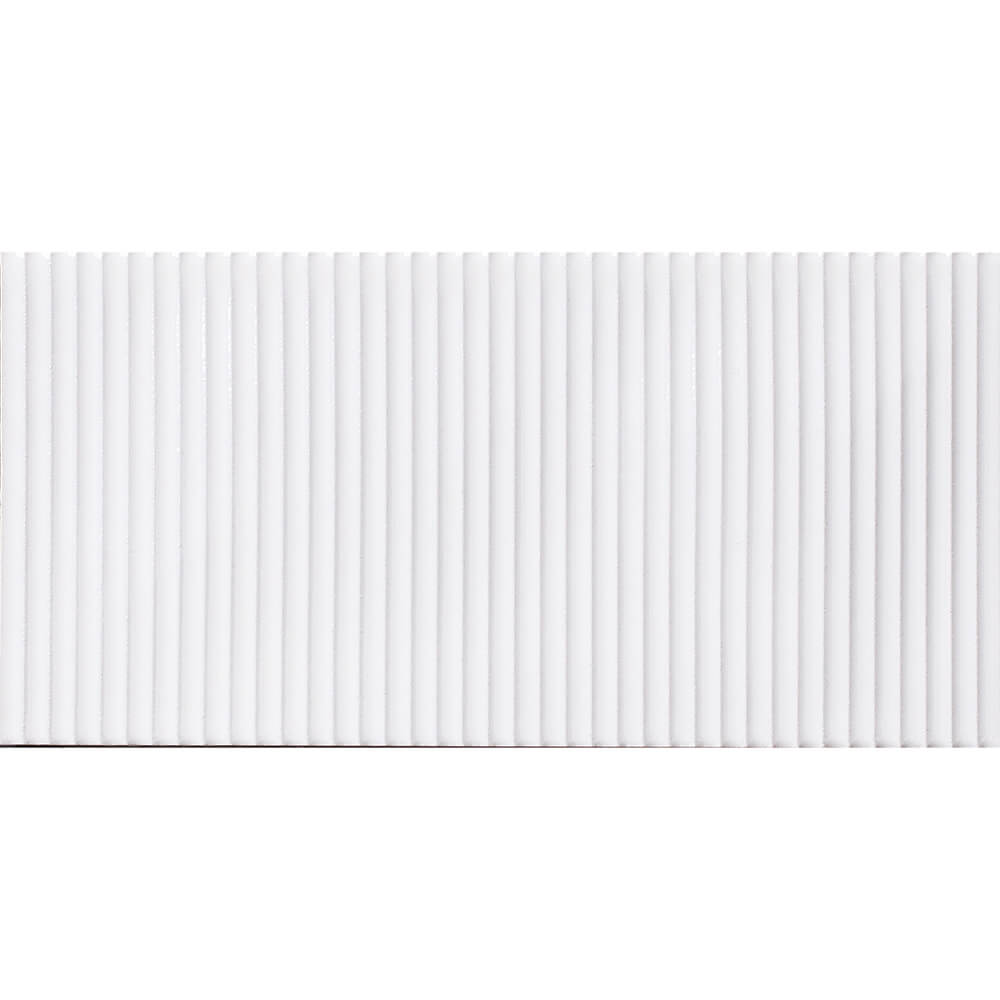

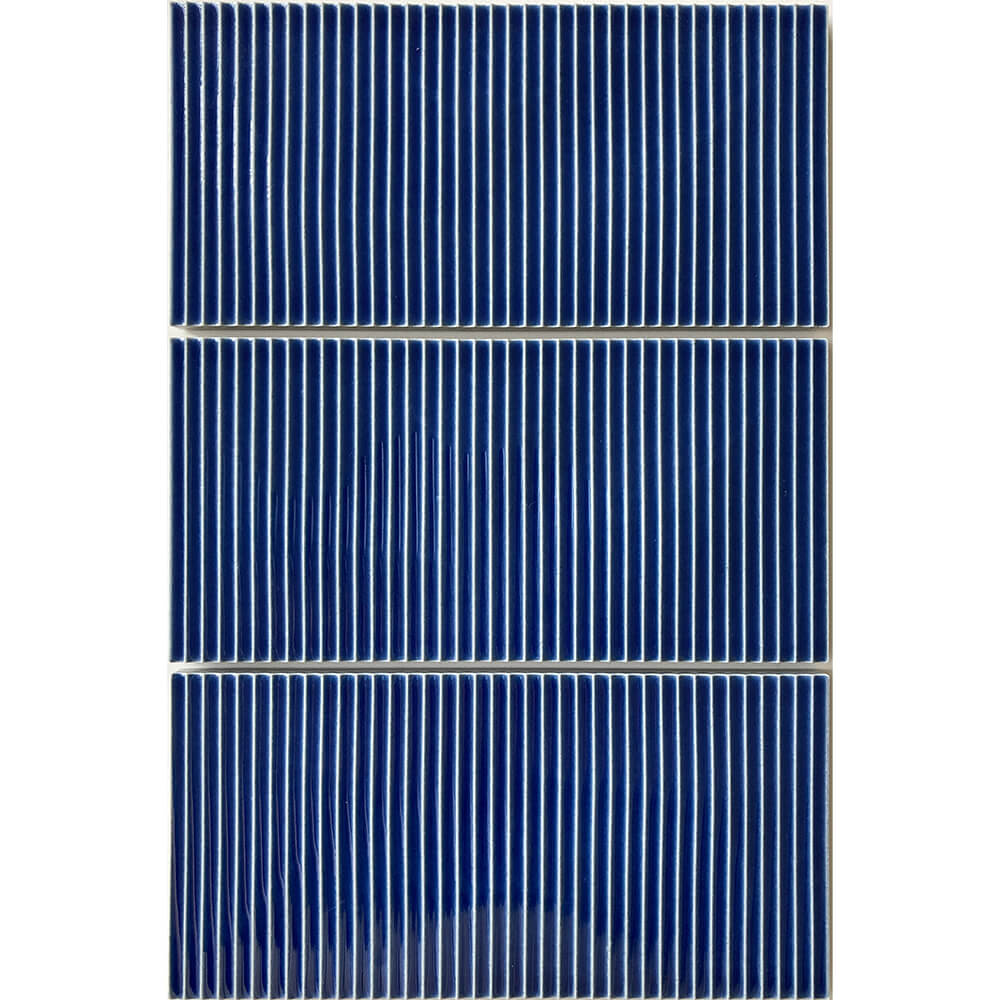

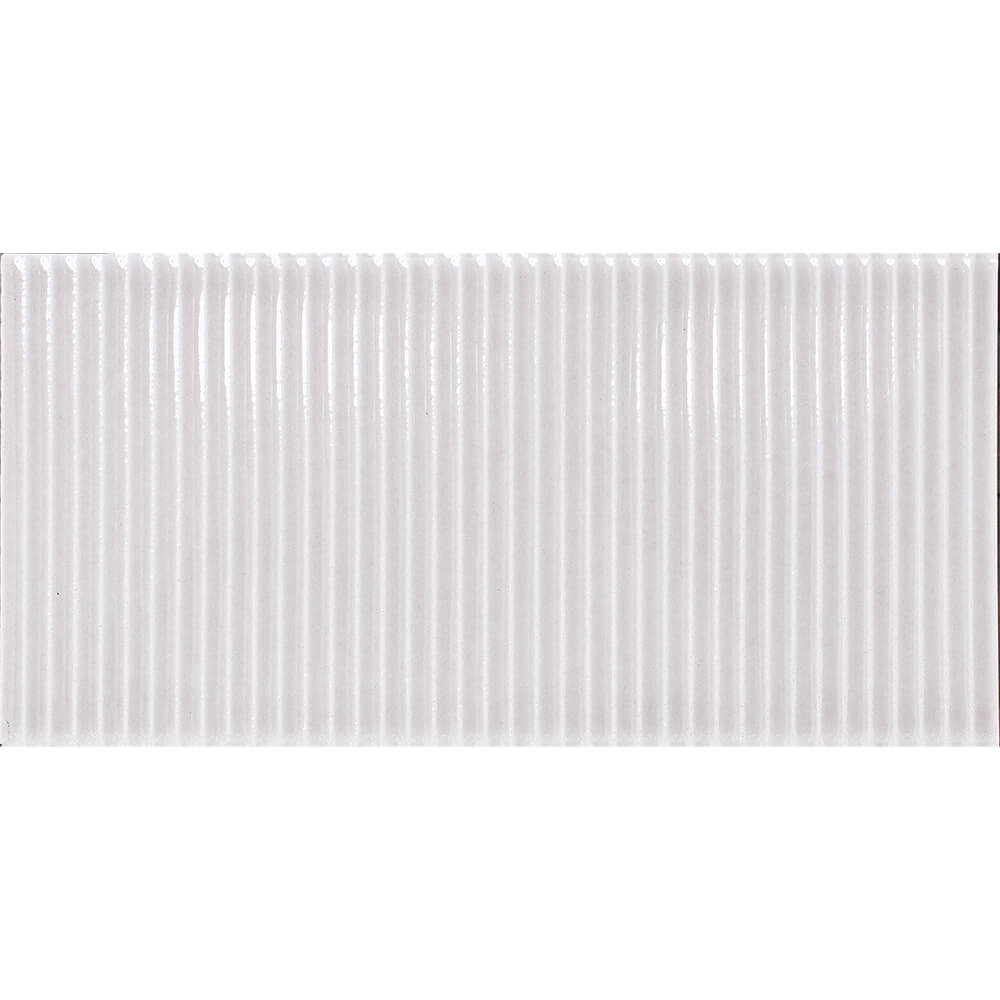

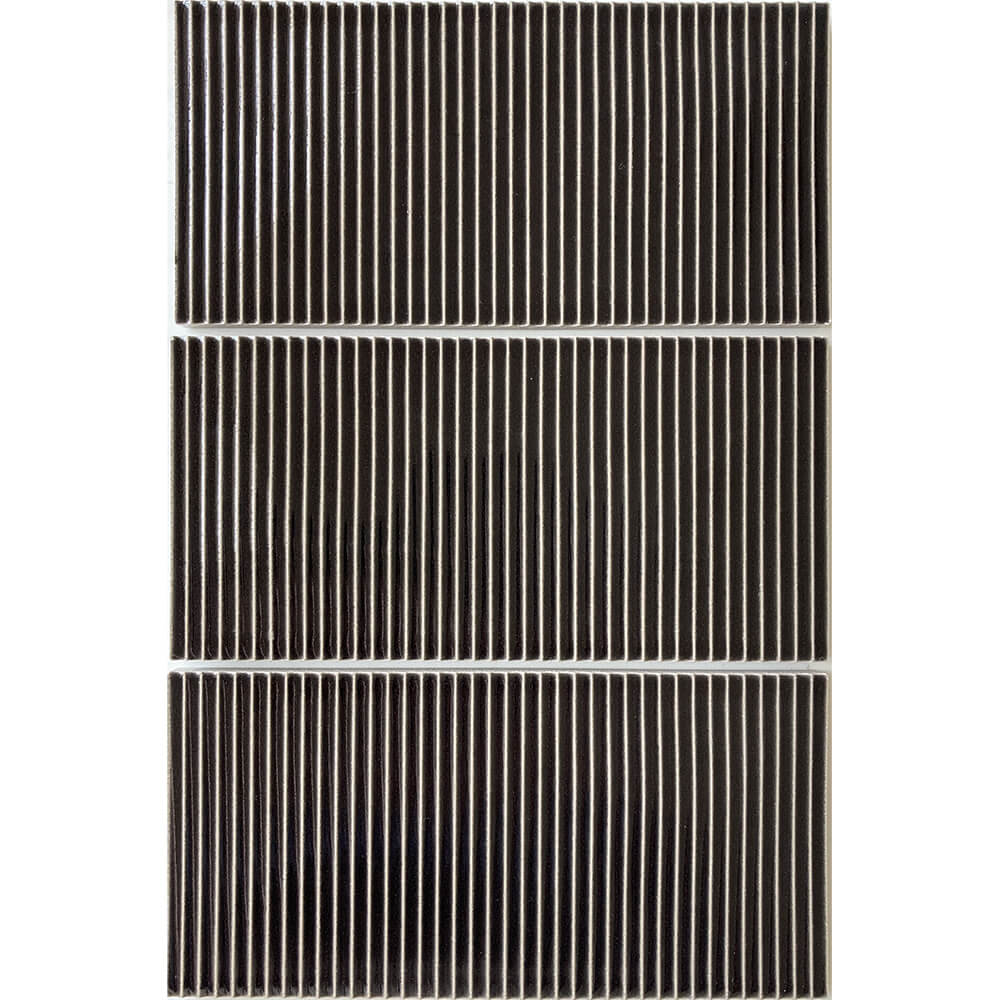

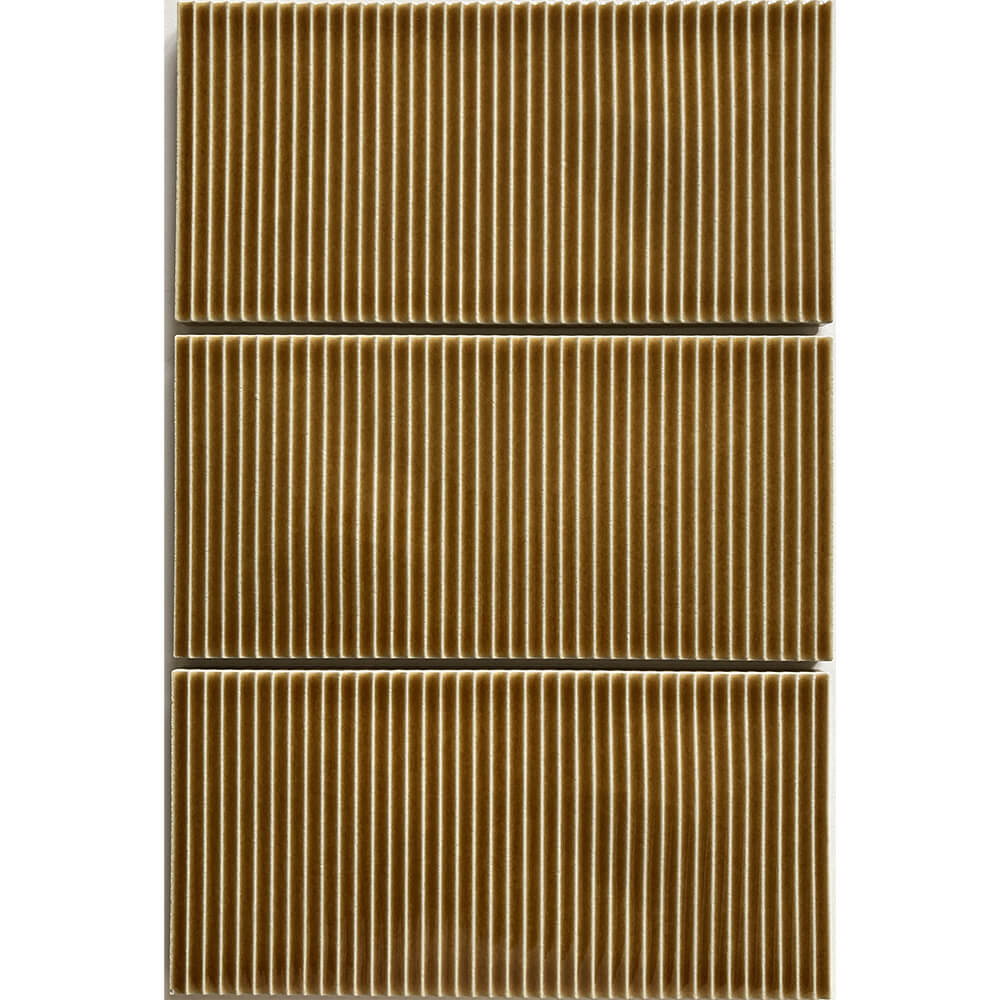

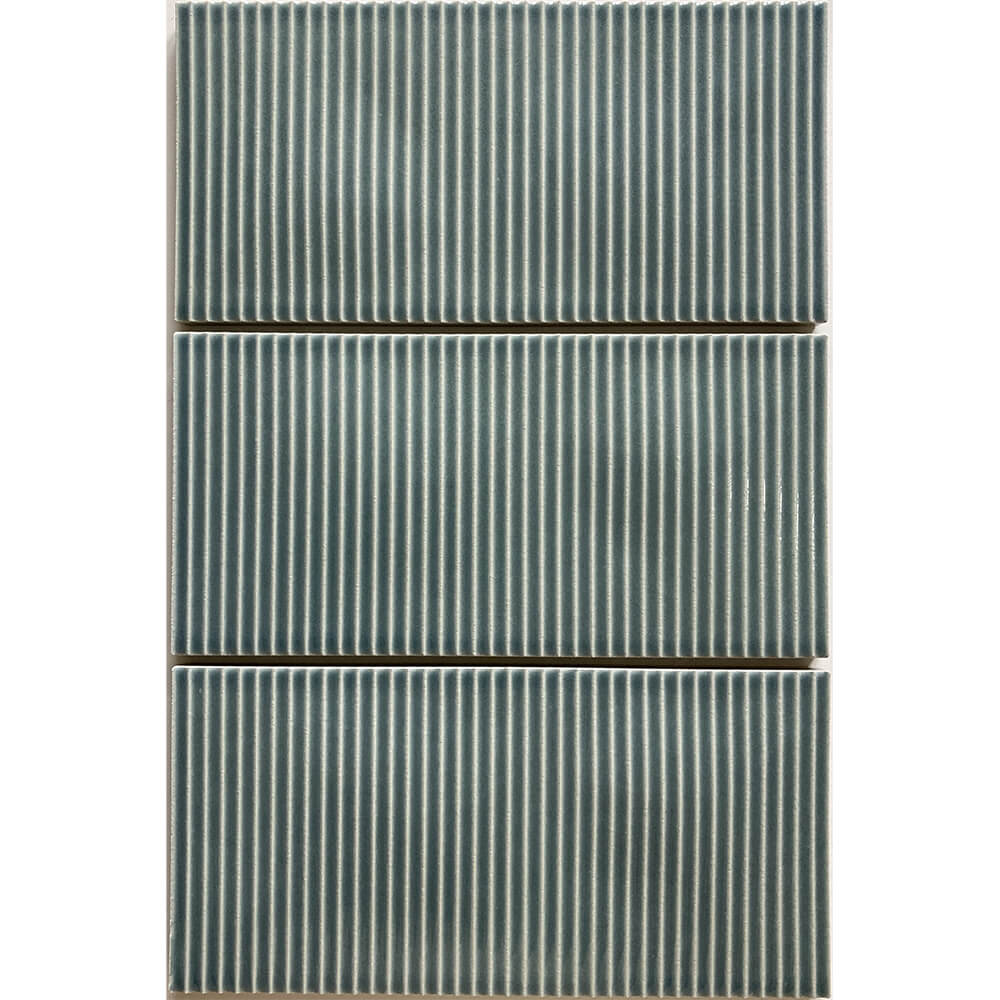

Colors

For any questions about the product, please make an inquiry from here.
