KOGUCHI

Description

Data Sheet

NOTE : Has natural shade variation among batches.
Has size variation within JIS. *JIS: ±1.2mm / ±2.0mm (58.8 ~ 61.2mm / 106 ~ 110mm)
5mm joint is recommended.
NOT ACID PROOF: ST-201S/202S/208S/308S/309S/204S

Application
Indoor Wall	Outdoor Wall	Indoor Floor	Outdoor Floor	Bathroom Wall	Bathroom Floor	Backsplash	Pool
〇	△	△	✕	△	✕	△	△

*This application is based on JIS (Japanese Industrial Standards) 〇：Suitable　△：Inquiry Required　✕：Not Suitable

All items are sold by pallet. For the quantity per pallet, please find the Packing Information below.

Update: 7th February, 2025.

---

KOGUCHI

---

MADE IN JAPAN

GLAZED PORCELAIN

PACKAGING

COLOR CODES	UNIT	SIZE	BOX			PALLET
ST-140S/221S/152S/ 151S/252S/414S/201S/ 202S/208S/308S/309S/ 325S/314S/211S/204S	INCH/FEET	2-1/2"x4-1/4"	PC	SQ.FT.	LB(NET WEIGHT)	BOX	SQ.FT.	LB(NET WEIGHT)
			160	11.20	55	40	448.00	2,200
	METRIC	60x108x10mm	PC	SQ.M.	KG(NET WEIGHT)	BOX	SQ.M.	KG(NET WEIGHT)
			160	1.03	25	40	41.45	1,000

TEST REPORT

The tiles have been inspected in accordance with JIS (Japanese Industrial Standards) specification.

Test		Result			Specification
Water Absorption		2.72% on average.			JIS A 1509-3 : 2008
Frost Resistance		No deterioration.			JIS A 1509-9 : 2014
Chemical Resistance		As below:			JIS A 1509-10 : 2020
Ammonium chloride solution		No change.
Hydrochloric acid solution		Changed :ST-201S/202S/208S/ 308S/309S/204S
Citric acid solution
Potassium hydroxide solution
Sodium hypochlorite solution

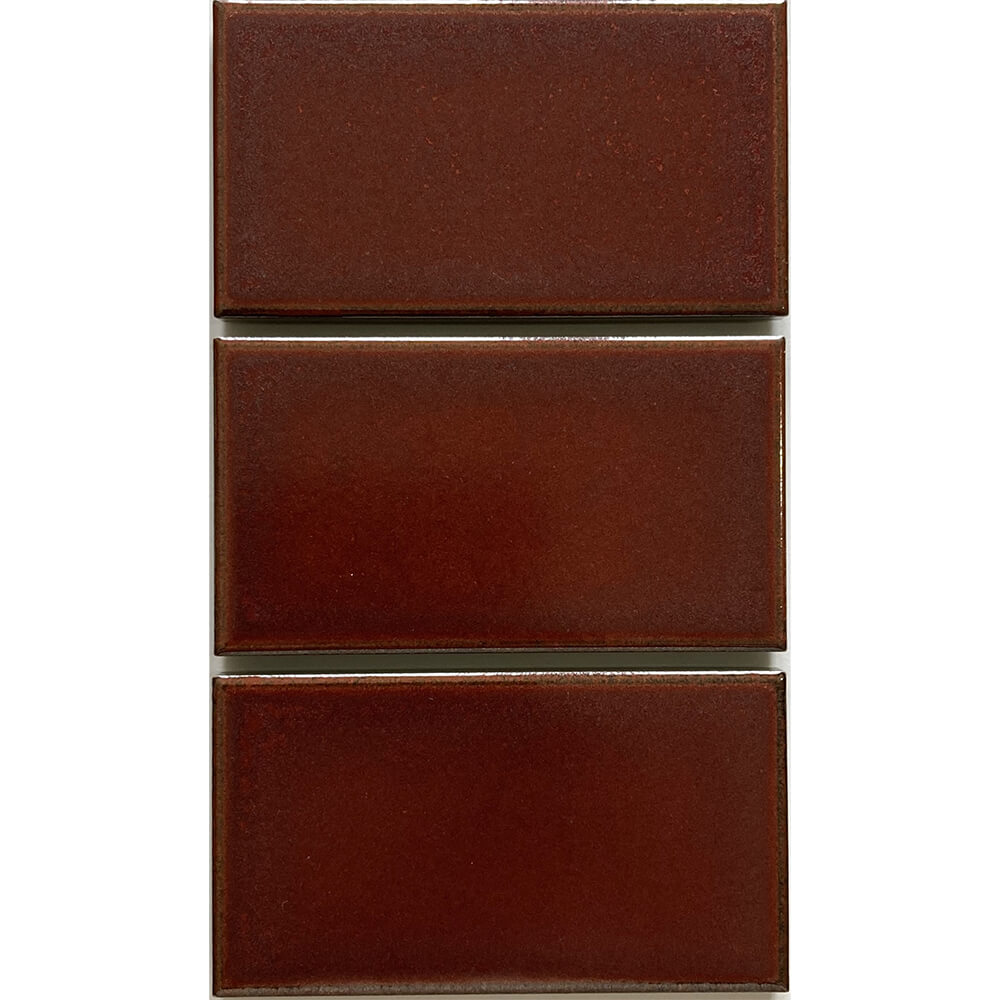

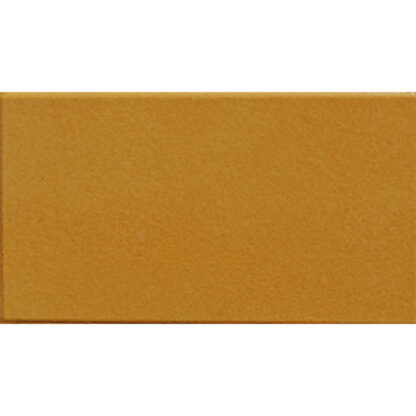

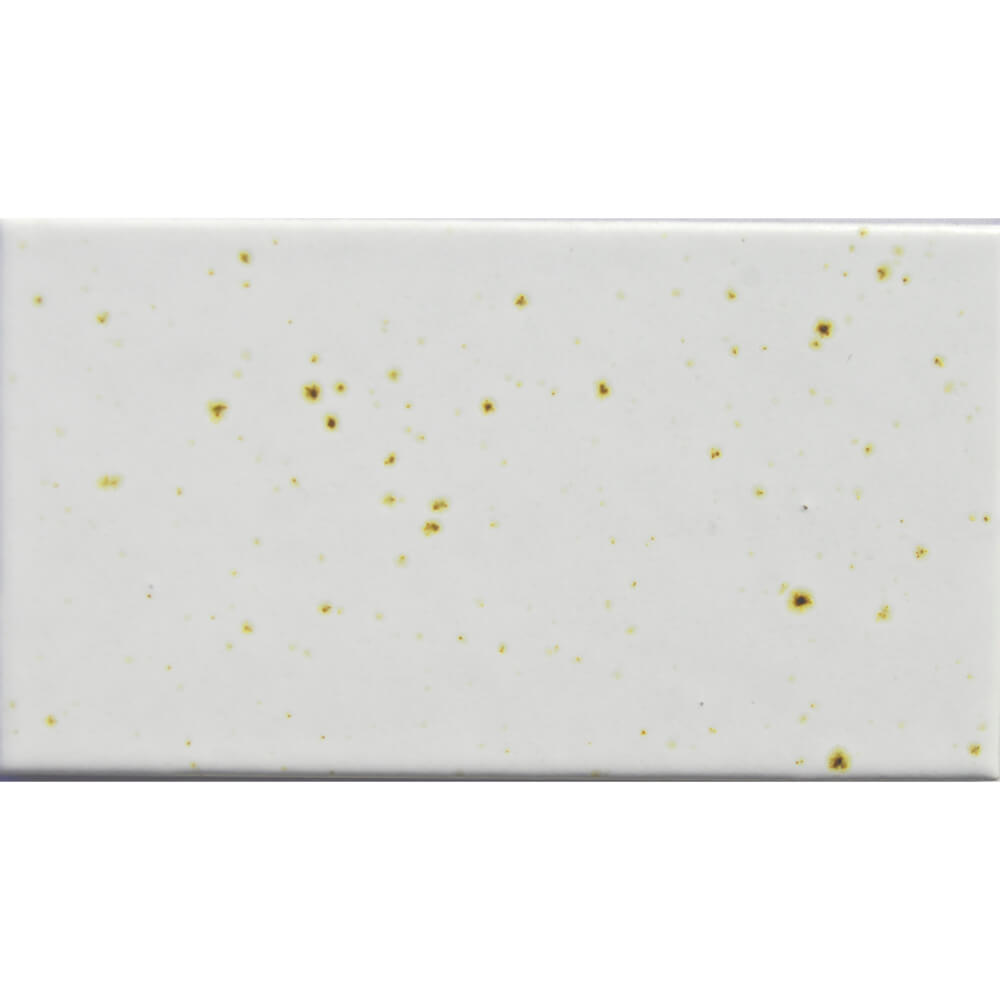

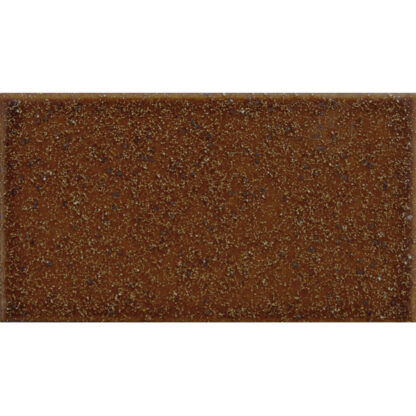

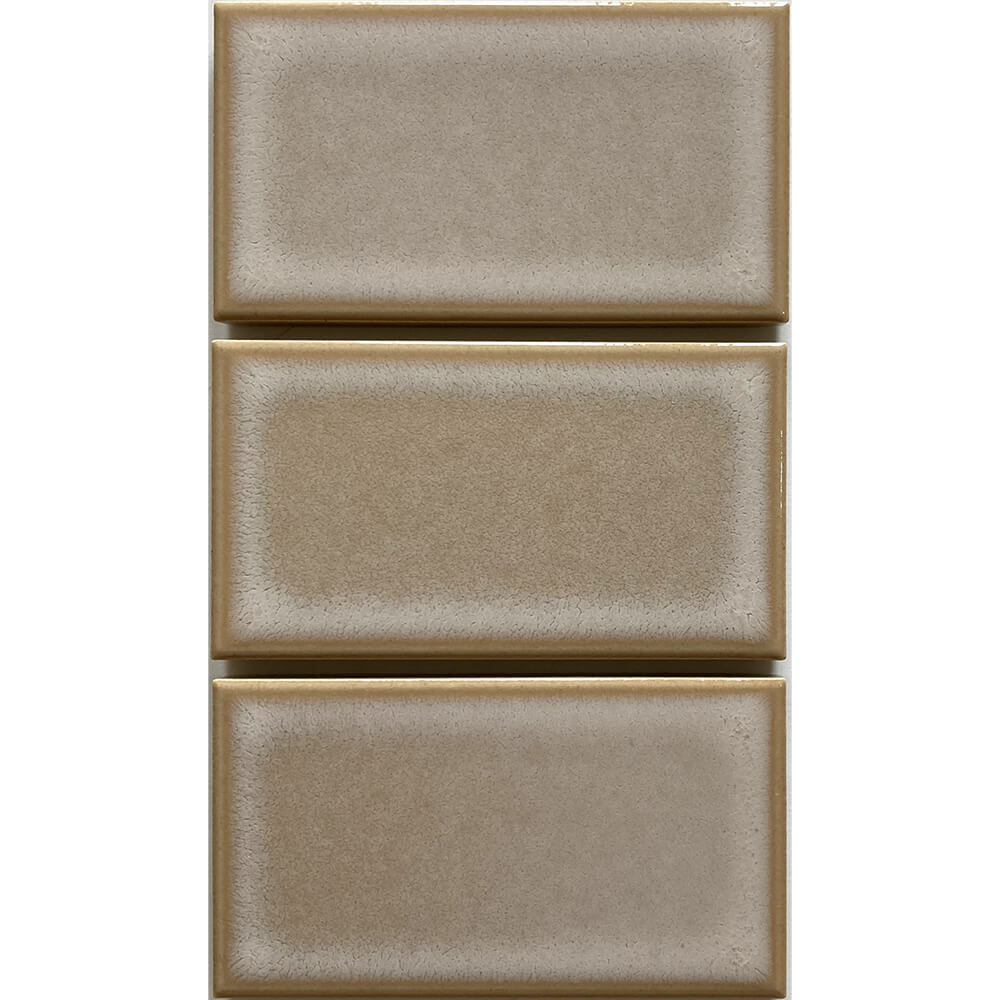

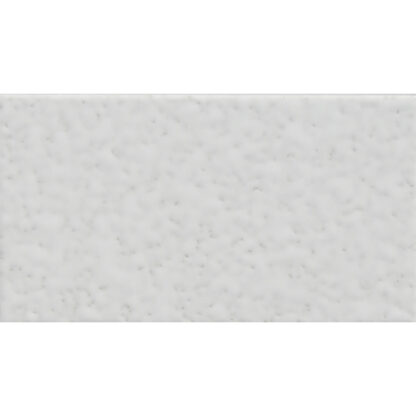

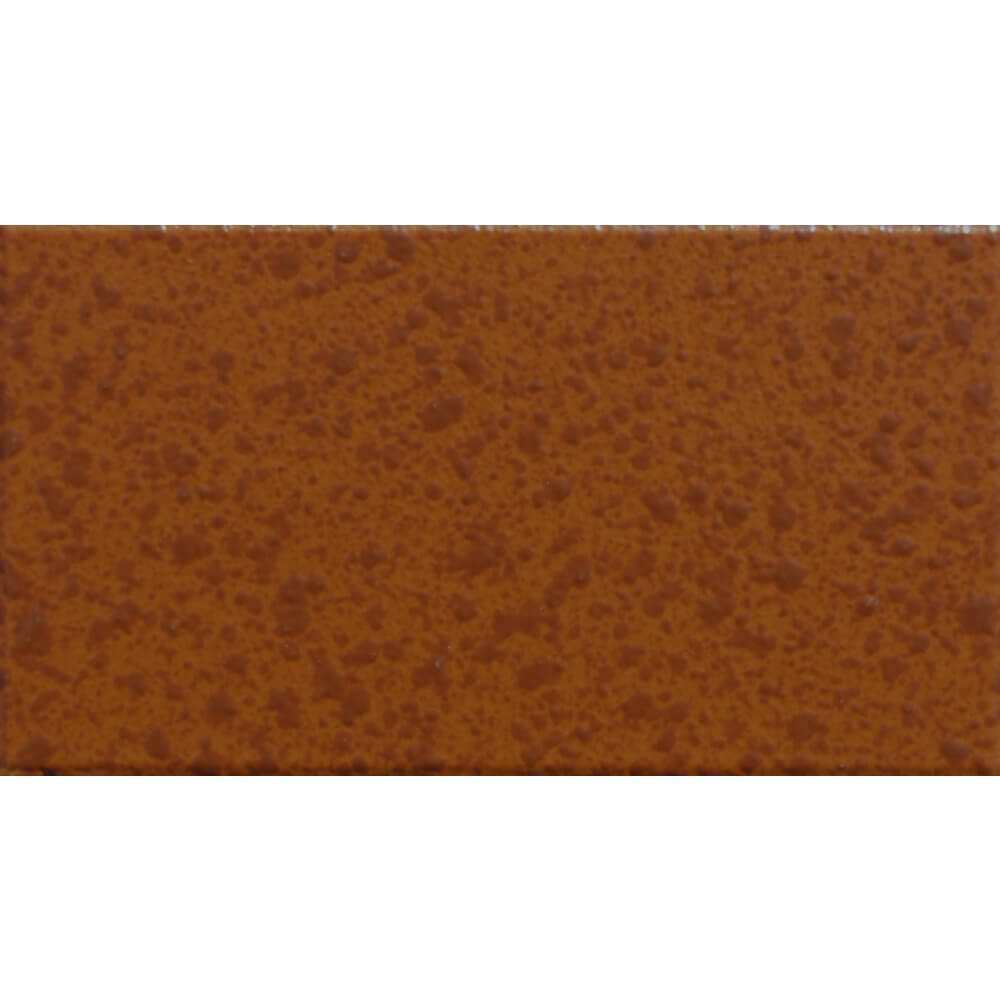

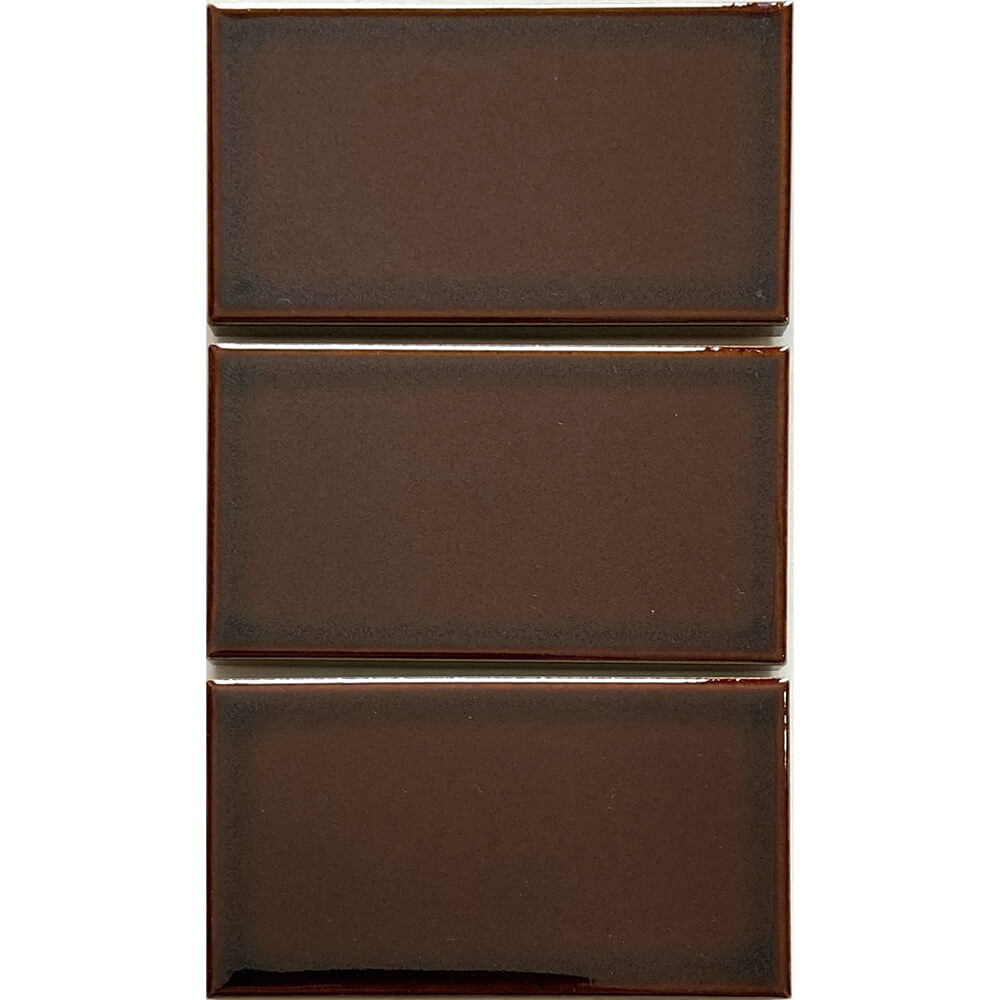

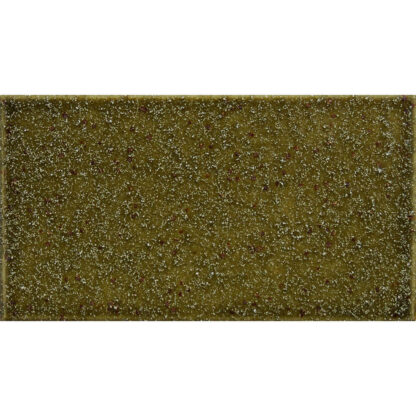

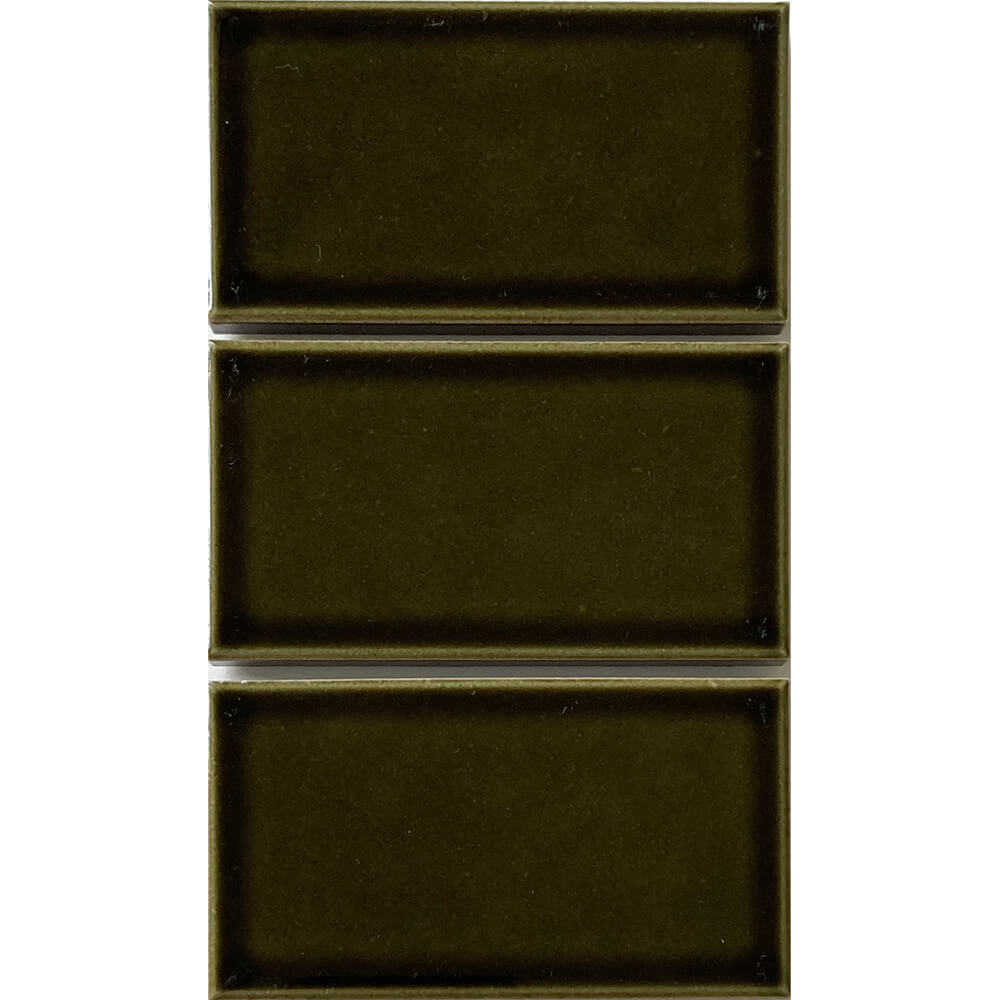

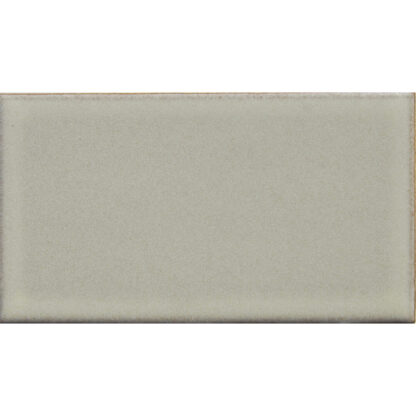

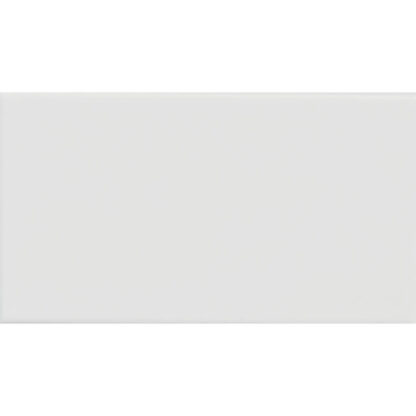

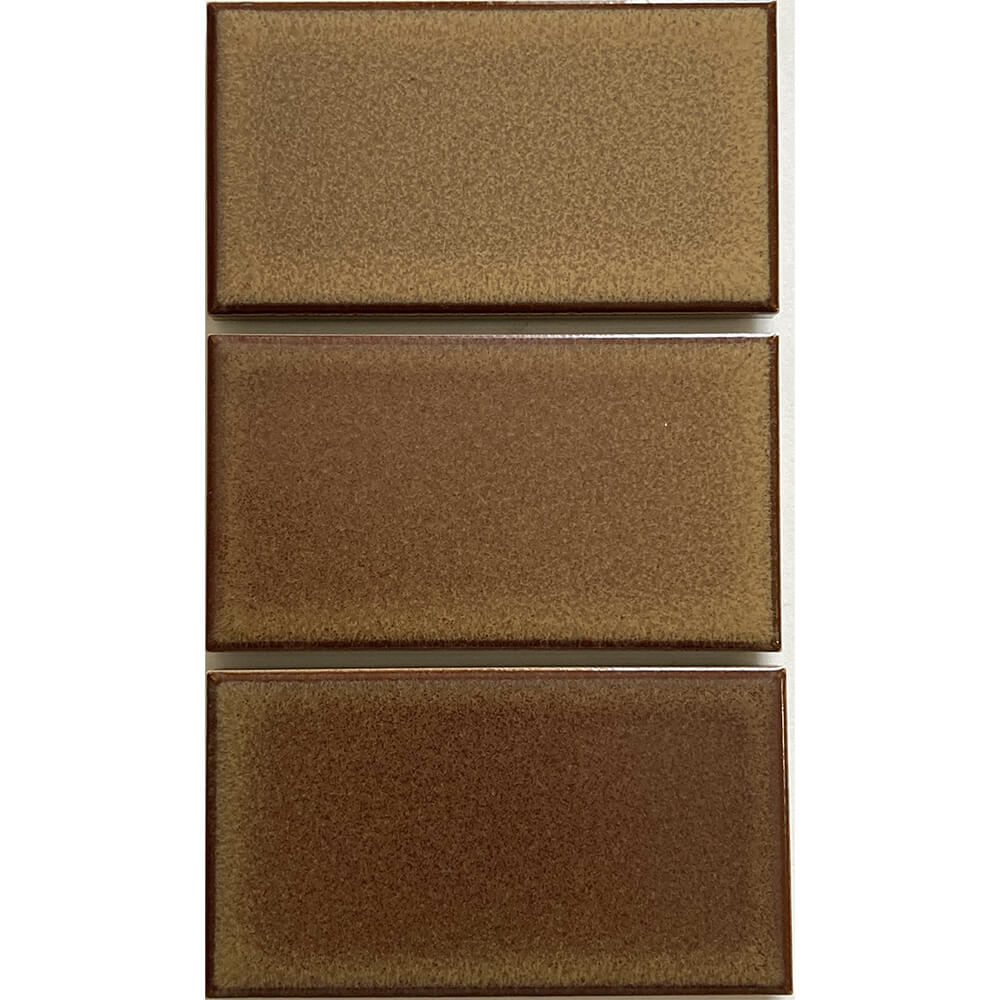

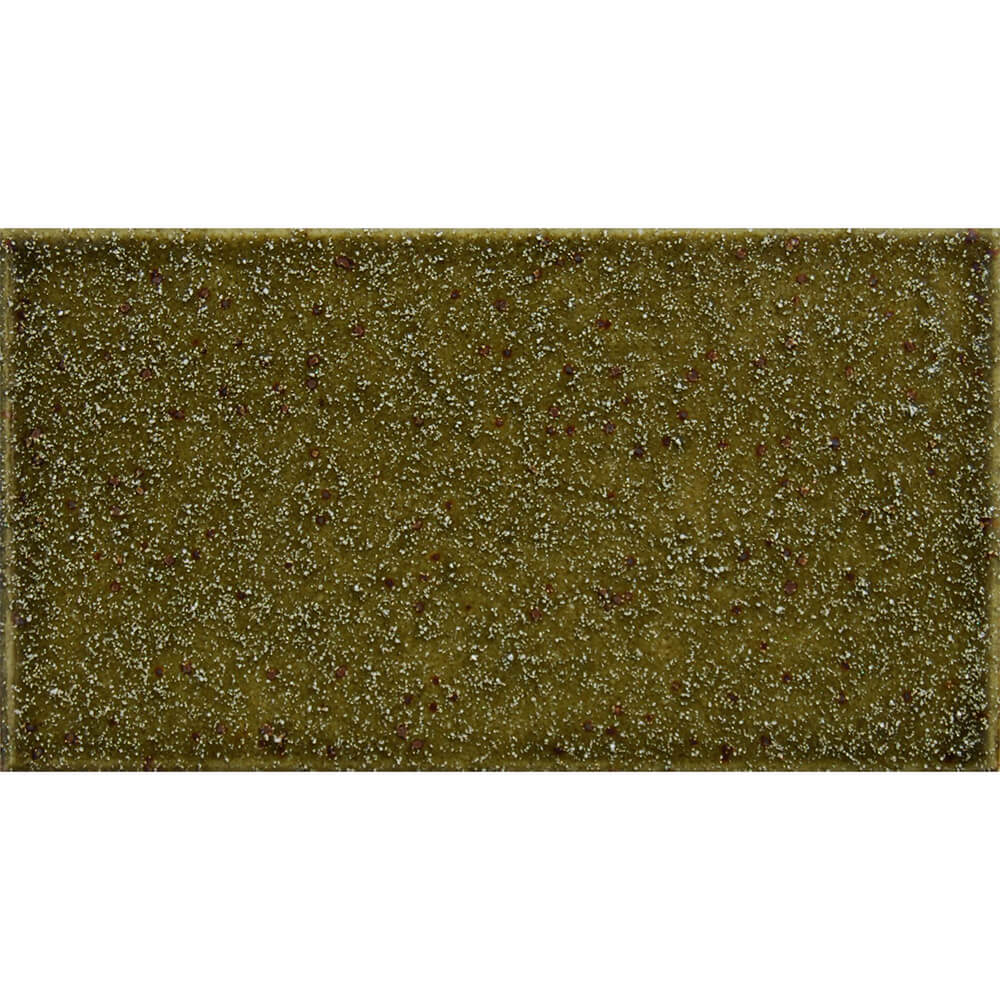

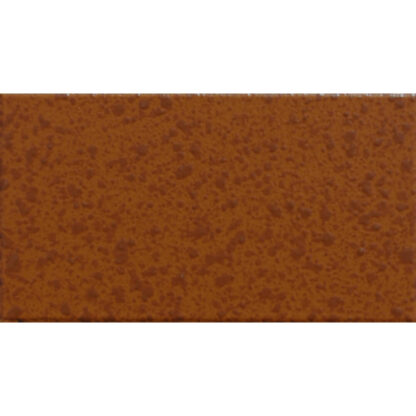

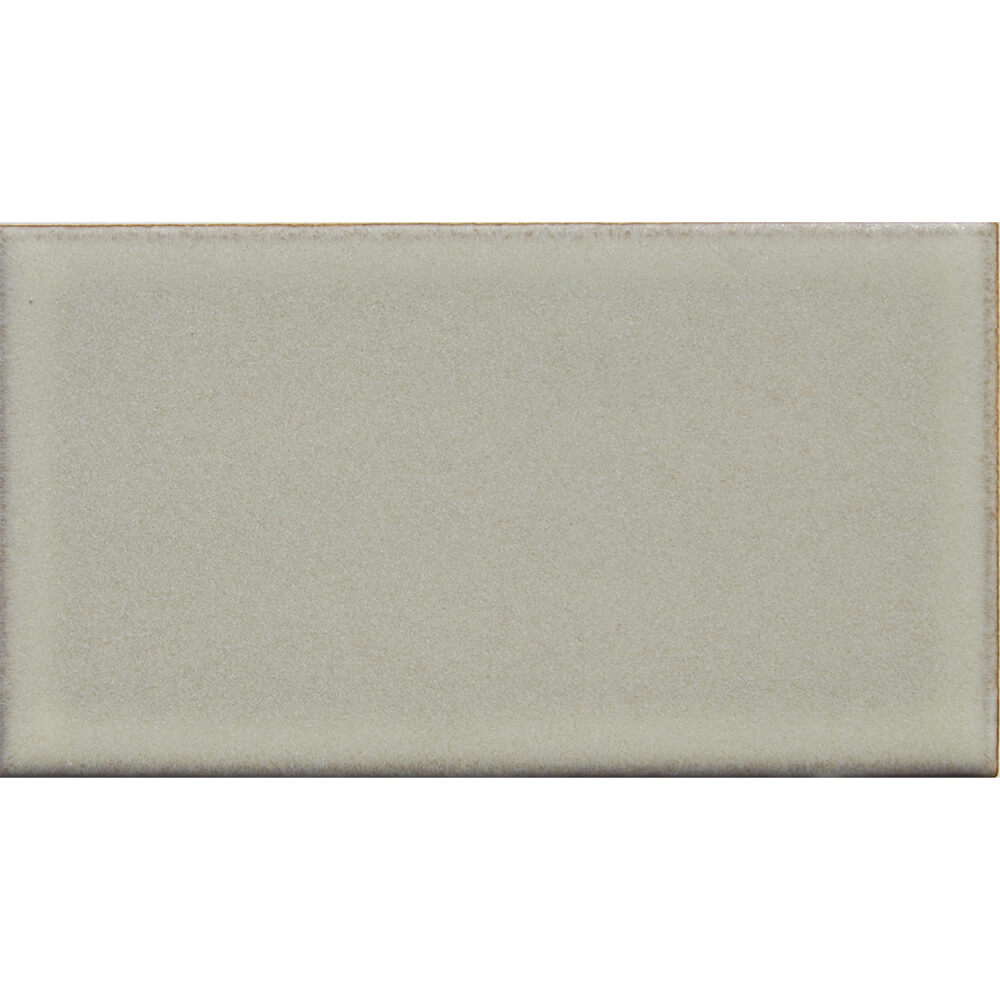

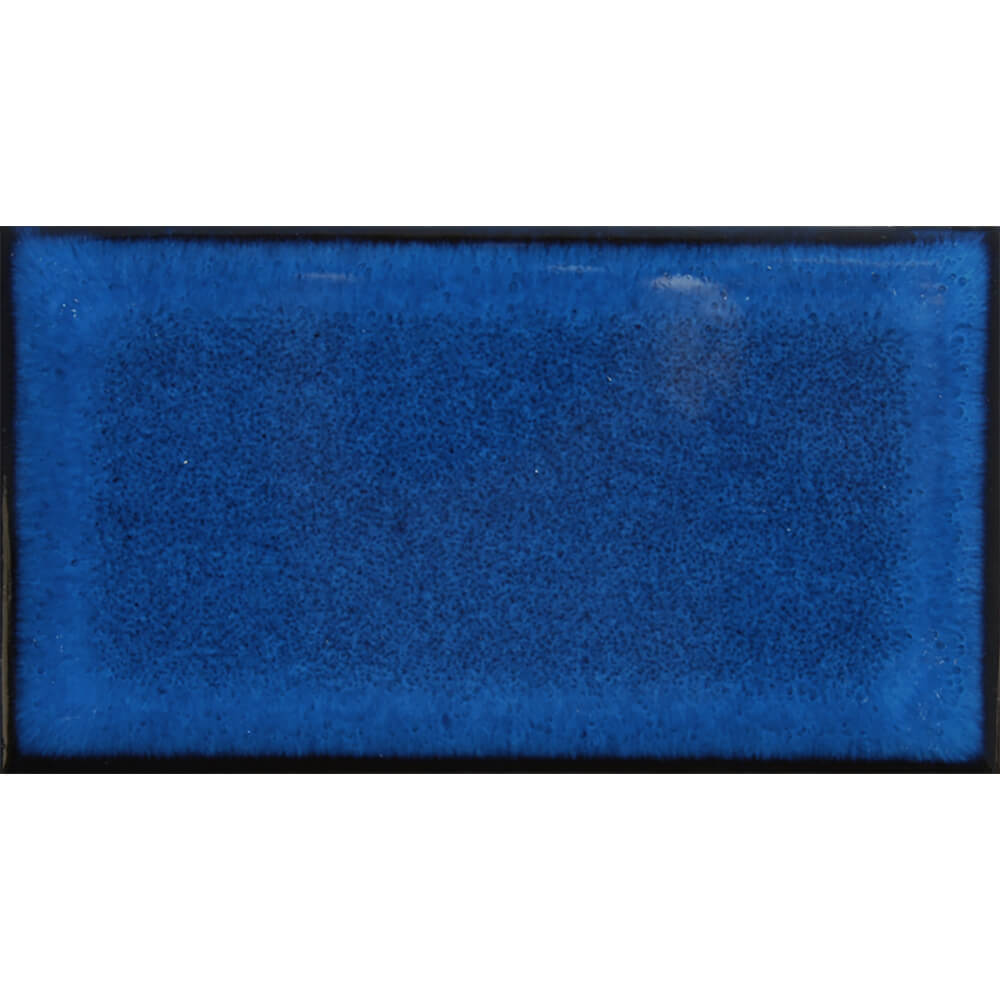

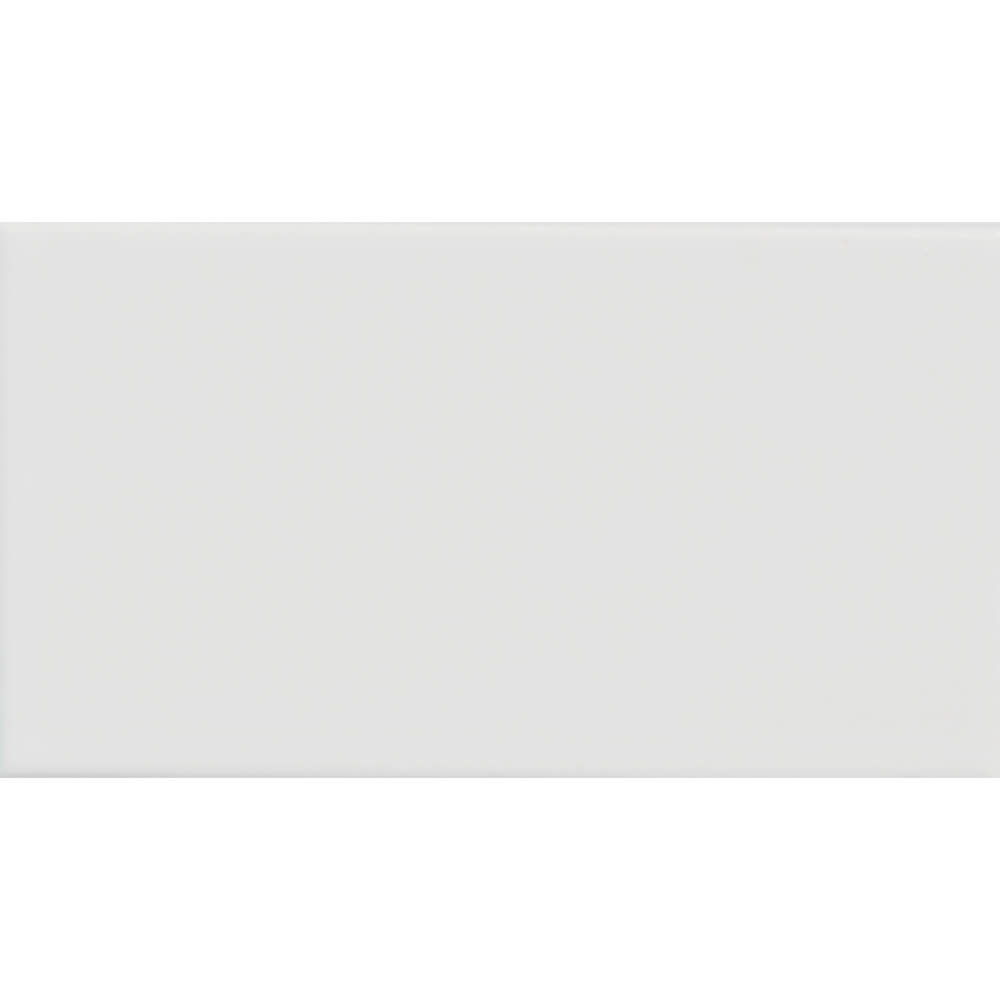

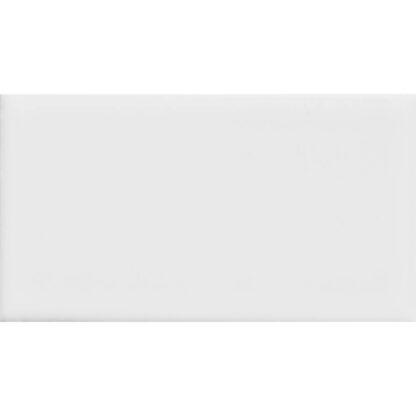

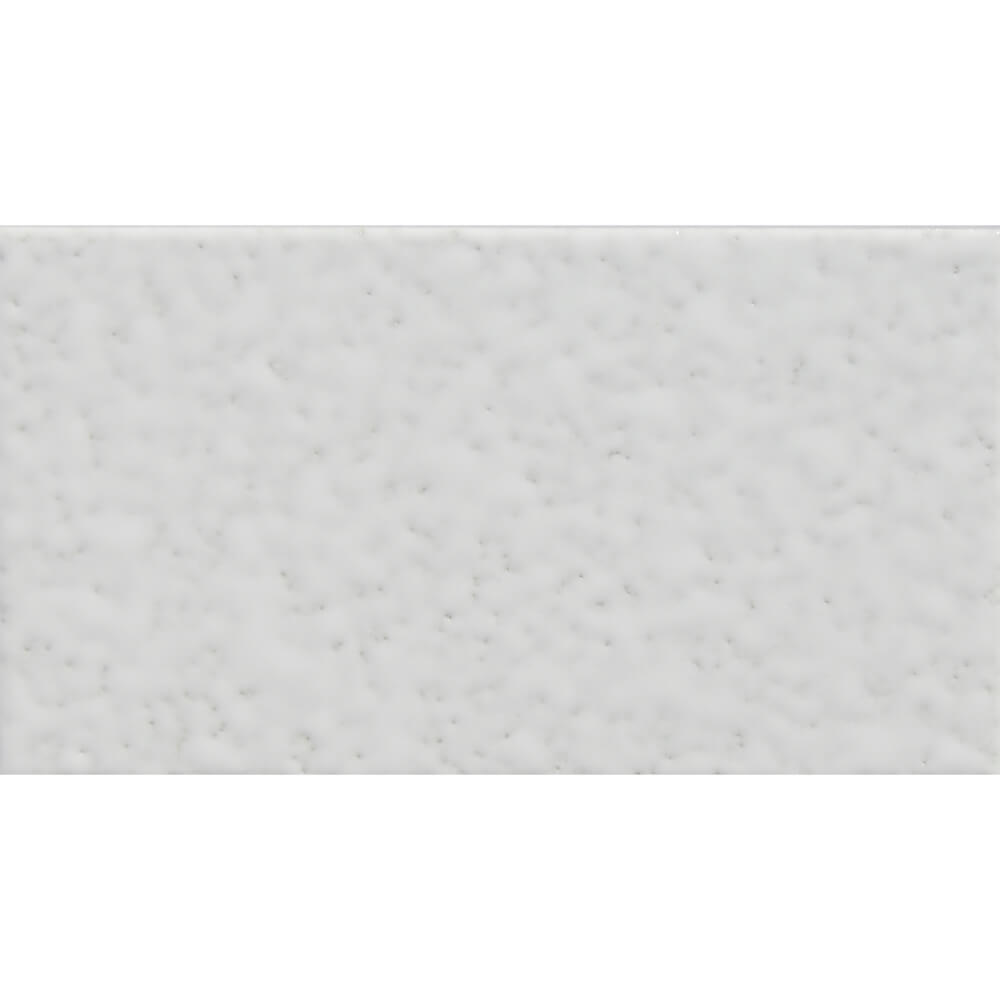

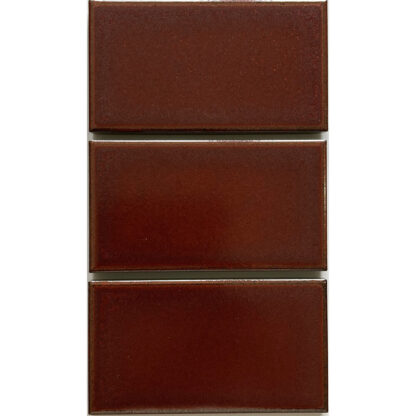

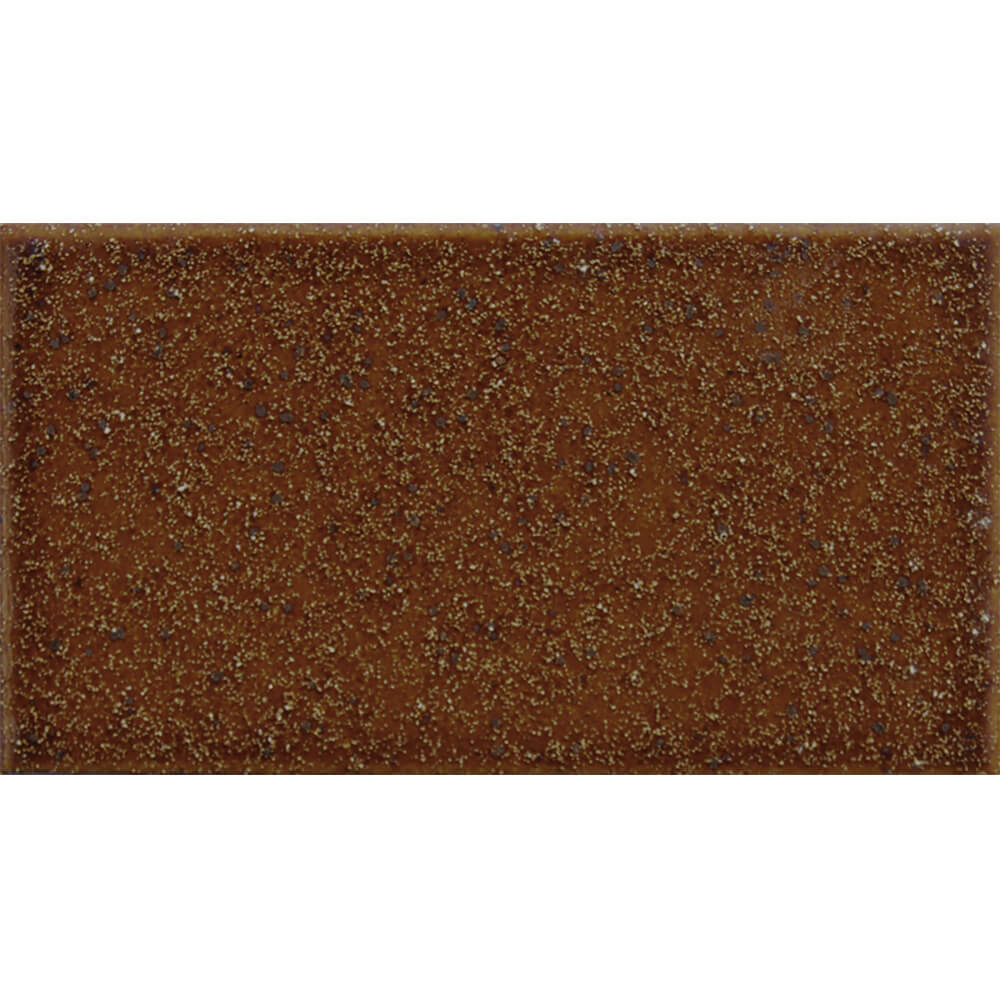

Colors
